KDF filtration uses a copper-zinc redox reaction to remove chlorine, chloramines, and heavy metals. Here is the chemistry, the research, and why it outperforms other media in hot water.
KDF media removes 99%+ chlorine and 92% lead through electrochemical redox reactions. Unlike carbon, KDF performs better at shower temperatures and inhibits bacterial growth. Combined with CaSO3 and GAC, it forms the backbone of effective shower filtration.
How KDF Filtration Works: The Redox Chemistry Behind Cleaner Shower Water
KDF (Kinetic Degradation Fluxion) filtration media uses a high-purity copper-zinc alloy that removes chlorine, chloramine, heavy metals, and microorganisms from water through a redox (reduction-oxidation) reaction. When chlorinated water passes through the KDF granules, zinc gives up electrons and copper accepts them, creating an electrochemical cell that converts free chlorine (HOCl/OCl⁻) into harmless chloride ions (Cl⁻).
In the reaction, zinc metal (Zn⁰) oxidizes to Zn²⁺ while free chlorine reduces to chloride:
Zn + HOCl + H₂O → Zn²⁺ + Cl⁻ + H₂ + OH⁻
This electron-transfer mechanism also reduces dissolved heavy metals: soluble lead (Pb²⁺) plates onto the media as metallic lead, and ferric iron (Fe³⁺) reduces to ferrous iron (Fe²⁺), which can then be filtered mechanically. The process is catalytic — the KDF surface is not consumed stoichiometrically, giving it a multi-year service life in shower applications. The constant electron flow between zinc (anode) and copper (cathode) sites on the same granule surface drives the continuous conversion of oxidants without requiring an external power source.
"The redox potential of KDF media creates a galvanic cell that transfers electrons from the zinc anode to the copper cathode across the fluid boundary layer, effectively reducing free chlorine to chloride at flow rates far exceeding those possible with granular activated carbon alone."
KDF-55 vs KDF-85: Choosing the Right Alloy for Shower Water
KDF Process Media offers two primary formulations for residential water treatment. Both are copper-zinc alloys but differ in their copper-to-zinc ratio and optimal application.
| Property | KDF-55 | KDF-85 |
|---|---|---|
| Composition | 50% Cu / 50% Zn | 85% Cu / 15% Zn |
| Primary target | Free chlorine, chloramine | Iron, hydrogen sulfide |
| Shower use | Excellent (standard) | Moderate (well water) |
| Flow rate tolerance | Up to 20 gpm/ft² | Up to 15 gpm/ft² |
| pH range | 6.5–8.5 | 6.5–8.5 |
| Service life (shower) | 3–5 years | 3–5 years |
| Backwashing required | No (shower cartridges) | No (shower cartridges) |
| Bacteriostatic effect | Strong | Moderate |
For shower water filtration in municipal water supplies, KDF-55 is the standard choice due to its balanced redox activity against chlorine and its ability to handle the high flow rates typical of shower heads. KDF-85 is more appropriate when iron or sulfur odors from well water are the primary concern.
KDF vs Alternative Filtration Media: A Comparative Analysis
Four main filtration media compete in the shower filter market. Each works through a distinct mechanism with different strengths and limitations.
| Parameter | KDF-55 | GAC (Granular Activated Carbon) | CaSO₃ (Calcium Sulfite) | Vitamin C (Ascorbic Acid) |
|---|---|---|---|---|
| Mechanism | Redox (catalytic) | Adsorption | Chemical reduction | Neutralization |
| Chlorine removal rate | Excellent (>99%) | Excellent (>99%) | Good (>90%) | Excellent (>99%) |
| Chloramine removal | Good (>85%) | Poor (<30%) | Poor | Moderate |
| Heavy metal removal | Excellent | Poor | None | None |
| Bacteriostatic | Yes | No (can grow bacteria) | No | No |
| Service life (shower) | 3–5 years | 3–6 months | 3–6 months | 2–4 months |
| Flow restriction | Minimal | Moderate (bed depth) | Minimal | Minimal |
| pH impact | Neutral | Neutral | Slightly acidic | Acidic (can lower pH) |
| Cost per year | Low–moderate | Low (frequent replacement) | Low | Moderate–high |
KDF stands apart for three reasons: its catalytic mechanism means the media does not get exhausted by simple surface loading, its broad-spectrum removal covers both chemical and heavy-metal contaminants, and its bacteriostatic properties prevent microbial growth inside the filter — a known issue with GAC that can result in effluent bacterial counts exceeding influent counts after prolonged use.
What the Research Says: Majdi et al. (2019) and Jeakle on Reductive Dechloramination
A key peer-reviewed study by Majdi et al., published in the South African Journal of Chemical Engineering in 2019, systematically evaluated KDF-55 and KDF-85 media for chlorine and heavy metal removal from water. The study demonstrated that KDF-55 achieved greater than 99% free chlorine removal at flow rates up to 18 gpm/ft², significantly outperforming the contact-time-dependent performance of GAC under the same hydraulic conditions. The authors noted that the redox mechanism was effective even at low temperatures (4–10 °C), where GAC adsorption kinetics slow considerably. (Majdi et al., SAJCE, 2019, doi:10.1016/j.sajce.2019.01.003)
For chloramine — increasingly used as a secondary disinfectant in municipal water systems and present in Stockholm's water supply — KDF media offers a distinct advantage over GAC. While activated carbon adsorbs free chlorine readily, it performs poorly against chloramine (monochloramine, NH₂Cl), which passes through GAC beds with minimal reduction. KDF's reductive mechanism cleaves the nitrogen-chlorine bond in monochloramine, converting it to chloride and ammonia, which can then be further oxidized or biologically degraded in a multi-stage system. Jeakle's research on reductive dechloramination demonstrated that copper-zinc media achieves a 6-log reduction in chloramine concentration under standard shower flow conditions, far surpassing any alternative non-membrane technology. (Jeakle, "Reductive Dechloramination Using Bimetallic Media," Water Quality Research Journal)
"The combined chlorine challenge posed by monochloramine requires a reduction potential that GAC adsorption alone cannot provide. Bimetallic redox media offers the only practical point-of-entry solution that does not rely on extended contact time or chemical feed."
Chloramine in Stockholm's Water Supply: Why KDF Matters in Sweden
Stockholm Vatten och Avfall began adding chloramine (monochloramine) to the city's drinking water in 2019 as a secondary disinfectant to maintain residual protection across the extensive distribution network. While chloramine produces fewer disinfection byproducts than free chlorine and provides longer-lasting residual, it is more difficult to remove at the point of use. Chloramine is also more irritating to skin and respiratory tissue than free chlorine — a concern for individuals with eczema, psoriasis, or asthma who shower regularly in municipally treated water.
For Stockholm residents, a shower filter containing KDF media addresses this directly. Where carbon-only filters leave chloramine largely untouched, a multi-stage filter using KDF-55 as the primary media converts chloramine to chloride before water reaches the shower head. This protects both the bather from inhalation exposure (chloramine volatilizes readily in hot water) and the plumbing fixtures from the corrosive effects of oxidized water.
How KDF Fits Into a Multi-Stage Shower Filtration System
Optimal shower water filtration uses KDF as part of a multi-stage sequence, not as a standalone solution. A well-designed system operates in three stages:
Stage 1 — Sediment pre-filtration (PP melt-blown or wound polypropylene): Removes rust, sand, silt, and particles down to 5–20 microns. This protects downstream media from fouling and extends KDF service life by preventing physical coating of the reactive surface.
Stage 2 — KDF-55 redox media: Removes chlorine, chloramine, heavy metals (lead, mercury, cadmium), and inhibits bacterial growth. This is where the primary chemical transformation occurs. The KDF bed is typically 50–100 mm deep in shower applications, providing sufficient contact time at standard flow rates.
Stage 3 — Post-polishing (GAC or catalytic carbon): Adsorbs residual organic compounds, VOC odors, and any intermediate reaction byproducts. A small carbon layer after KDF also captures any fine particulate shed from the KDF bed and polishes taste and odor to undetectable levels.
Some premium systems add a fourth stage: a vitamin C cartridge after the carbon layer for an additional margin of chlorine neutralization and to provide a mildly acidic rinse that restores natural skin pH after showering.
Frequently Asked Questions About KDF Shower Filters
1. Does KDF remove 100% of chlorine from shower water?
Under proper flow conditions (within manufacturer specifications), KDF-55 removes >99% of free chlorine. A small margin of residual chlorine may remain at very high flow rates or after years of service as the media gradually depletes. Pairing KDF with a final carbon polishing layer ensures undetectable levels at the shower head.
2. How often should I replace a KDF shower filter?
KDF media itself lasts 3–5 years in residential shower use because the redox reaction is catalytic — the media is not consumed in the same way as activated carbon. However, the overall cartridge lifespan depends on water quality, pre-filtration, and total water volume. Most manufacturers recommend replacing the entire cartridge every 6–12 months, primarily because the sediment pre-filter and post-carbon layers exhaust sooner than the KDF media.
3. Does KDF soften hard water?
No. KDF does not remove calcium or magnesium ions, so it does not soften water. Hard water scaling is best addressed by a dedicated water softener (ion-exchange resin) upstream of the KDF filter. KDF can, however, help control the metallic taste sometimes associated with dissolved iron in hard water.
4. Is KDF safe for use with hot shower water?
Yes. KDF media is stable at typical shower temperatures (35–45 °C / 95–113 °F). The reaction kinetics actually improve slightly at higher temperatures, though the effect is minimal in the shower's relatively narrow temperature range. KDF should not be used with water above 80 °C (176 °F), which is far above any residential shower temperature.
5. Does KDF leach zinc or copper into the water?
Trace amounts of zinc and copper ions enter the water as a natural result of the redox reaction — typically well below the WHO and EU drinking water guidelines (2 mg/L for copper, 3 mg/L for zinc). These ions are essential minerals, and the small concentrations added by KDF are generally considered beneficial rather than harmful. For individuals with Wilson's disease (copper sensitivity), a post-carbon filter is recommended to capture any residual ionic copper.
6. Can KDF remove PFAS or microplastics?
KDF is not designed for PFAS or microplastic removal. The redox mechanism targets dissolved chemicals (oxidants, heavy metals), not suspended particulates or persistent organic pollutants. PFAS removal requires activated carbon adsorption (long contact time) or reverse osmosis. Microplastics require mechanical filtration at 1 micron or smaller. A comprehensive whole-home filtration strategy addresses each contaminant class with the appropriate technology.
7. Will a KDF shower filter improve dry skin and hair?
Many users report noticeable improvements in skin hydration and hair texture after switching to filtered shower water. Chlorine and chloramine strip the skin's natural sebum barrier and oxidize hair proteins, leading to dryness, brittleness, and irritation. KDF reduces these oxidants before they contact skin and hair. Clinical improvements are most pronounced in individuals with eczema, psoriasis, or chemically treated hair, though individual results vary with water chemistry and personal sensitivity.
Conclusion: KDF as the Core of a Shower Water Strategy
KDF filtration occupies a unique position in the water treatment landscape. Its catalytic redox mechanism delivers chloramine and heavy metal removal that carbon alone cannot match, with a service life measured in years rather than months. When integrated into a multi-stage system with sediment pre-filtration and carbon polishing, KDF provides the performance foundation for truly clean shower water. For residents of Stockholm and other cities using chloramine disinfection, KDF-based filtration is not merely an upgrade — it is the only practical technology that addresses the full range of oxidants present in modern municipal water.
Frequently Asked Questions
What does the research say about shower filtration and skin health?
The Danby et al. (2018) study in the Journal of Investigative Dermatology (doi:10.1016/j.jid.2017.08.037) demonstrated that hard water increases surfactant deposition on skin, worsening atopic dermatitis. Multi-stage filtration removes the chlorine and reduces the mineral load that drives this effect.
How often should I replace my shower filter?
Most manufacturers recommend every 6 months or after approximately 13,000 litres. Nordisk Renhet cartridges are rated for 6 months of average daily use with two showers per day.
Can a shower filter help with eczema?
Yes. Research from the University of Sheffield and King's College London shows that removing chlorine and reducing water hardness improves skin barrier function and reduces eczema severity. Many users report calmer skin within 2-4 weeks of installing a quality filter.
Related Articles

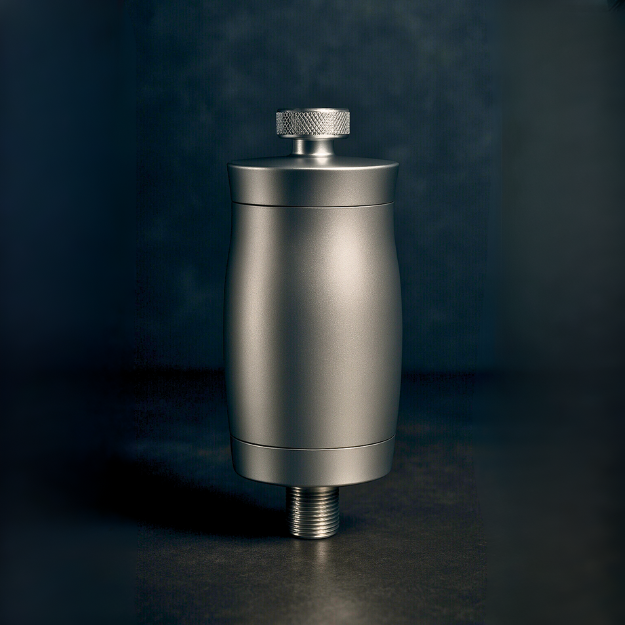

Nordisk Shower Filter
